CNCUT-3080GS-SE Dual-Side Drive Gantry CNC Flame Laser Composite Cutting Machine

Key point: Moving beyond traditional flame-cutting methods for thick plates that rely solely on the expertise of seasoned craftsmen.

This solution is suitable for cutting and processing of easily oxidizable metal materials such as carbon steel and low-alloy steel, with a plate thickness range of 10–200 mm (optimal range: 30–150 mm). Processable workpieces include flat plates, profiles, and irregular components.

1. Optimized Process Efficiency Laser rapid piercing + flame cutting requires no preheating, improving overall efficiency by 20%. The cut surface is vertical and smooth with small heat-affected zone, low distortion and better taper than traditional flame cutting, reducing secondary processing.
2. High-Speed Precision Piercing Equipped with hybrid lightning piercing and bus servo drive for efficient linear piercing, reducing gas and consumable consumption.
3. Mark-Free Piercing & Deslagging Special piercing process ensures mark-free results and avoids molten slag residue.
4. Highly Automated Control Supports auto-ignition (99.9% success rate), auto gas distribution and flameout detection. Built-in process database automatically optimizes parameters by material and thickness.
5. Maintenance-Free Height Control Special induction ring reduces slag adhesion, enhances durability and lowers maintenance cost.
6. Seamless Retrofit for Old Machines Supports system replacement and external upgrade with stable non-PLC structure, ideal for old machine rebuilding.
7. Flexible Operation Compatibility Retains traditional flame operation logic, supports buttons, touch screen, keyboard and mouse, compatible with gear-rack and linear guide machines.
8. Strong Function Expandability Integrated laser marking function expands applications and improves equipment utilization.
9. Safe & Easy Operation & Maintenance Special pneumatic control cabinet with interlock ensures high safety and strong anti-interference. Stable, low failure rate and easy maintenance.
10. Improved Processing Quality Laser-guided precise piercing with flame-assisted cutting delivers clean vertical cuts, less and easy-to-clean slag, small heat-affected zone, low distortion and better taper, reducing secondary machining.

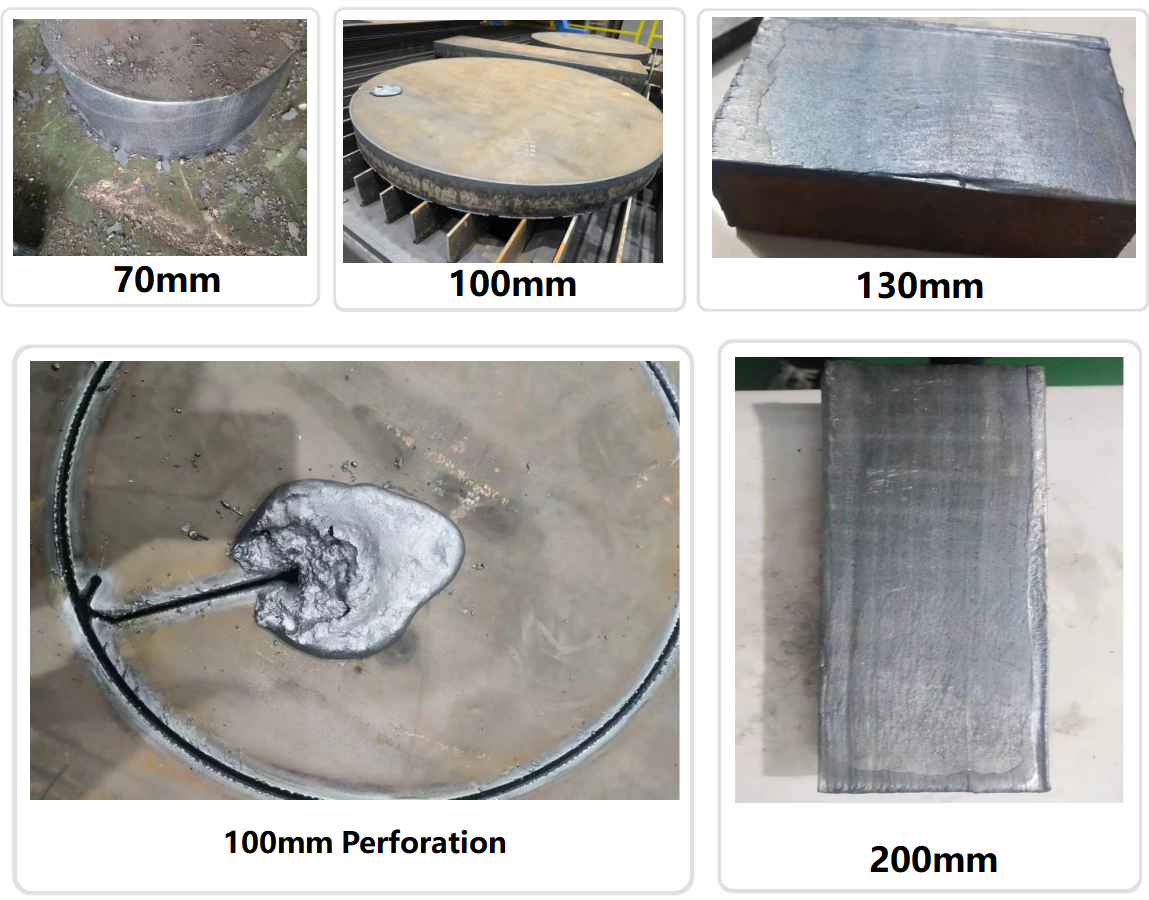

1. Cutting and drilling require no preheating, enabling arbitrary drilling on plates up to 200 mm in diameter. The drilling time is as follows:

2.Laser rapid piercing with high-efficiency flame cutting requires no preheating. Compared with conventional flame cutting, it greatly shortens piercing time, improves cutting efficiency by approximately 20%, reduces gas consumption by at least 30%, and lowers operating costs.

3.Lower Operation Threshold & Consistent Quality

• Built-in piercing parameter database supports direct import and automatic adjustment of gas and oxygen ratio according to plate thickness.
• Reduces reliance on operator experience, lowers skill requirements, and ensures consistent piercing and cutting quality.

4.High Degree of Automation

• Automatic ignition via laser.
• Automatic distribution of propane, acetylene, natural gas and preheating oxygen without manual operation.

5.Laser-guided precise piercing with flame-assisted cutting ensures vertical and smooth cutting surfaces, minimal and easy-to-clean slag, small heat-affected zone, low distortion, and better taper than traditional flame cutting, reducing secondary machining.

Effective Cutting Width	2500mm
Effective Cutting Length	6000mm
Materials suitable for laser flame cutting	carbon steel
Laser beam cutting thickness	Carbon steel: 0–150
Laser beam cutting speed	Based on material and plate thickness (see the composite description above)
Overall operating speed of the machine	50-10000mm/min
Cutting torch lifting distance	≤150mm
Overall Precision Standard for the Device	Complies with JB/T5102-1999
Overall line-drawing accuracy error of the entire machine	±0.5mm
Overall precision of the entire machine (Refer to the composite diagram on the right) Side length (each side): 1000 × 1000 Underline speed: 500–800 mm/min
velocity error	±5%
Cutting Roughness	Visual inspection: Roughness 12.5
ambient temperature	-10℃～+40℃
relative humidity	≤95% no condensation
ambient environment	Ventilation, no significant impact
supply voltage	220V/3×380V±10V
supply frequency	50Hz

Ensure you receive a high quality machine

• Every parts need be inspected
• Over 100 production process control
• Over 200 inspection items
• Sample processing of each machine
• 72 hours trial run before delivery

• Top quality sense, customers' requests come first
• 30 years + R & D history, the company was founded in 1993
• High-tech manufacturer with research anddesign capacity
• Stable and mature supplying system
• Young active sales and engineers for instant services(24 hours online)
• Upgrading on mechanism according to ergonomics and easy maintenance
• Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
